TL-26M1180Z_F04_MB_260320-1203Apr4.htm

Job Sheet-26M1180Z_F04_MB_260320

Path : D:\SeJong\model\2026\A-Tech\26M1180Z\04\04-BACK\

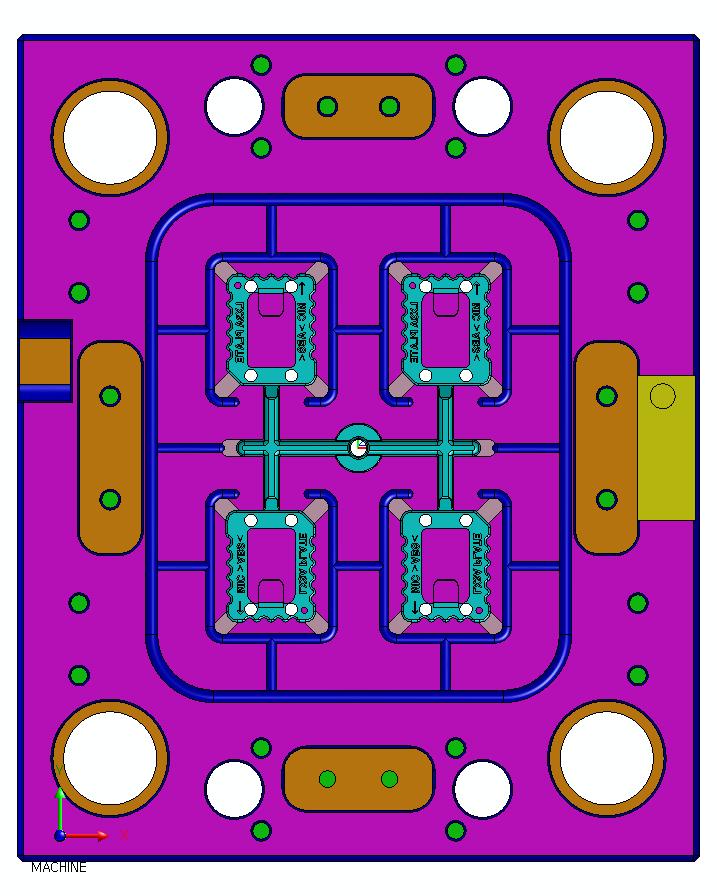

Geometry : 26M1180Z_F04.x_t.wnc

P/G : M031203Apr4.htm


X_Min : -165.000, X_Set_A : -170.000	Y_Max : 200.000, Y_Set_A : 205.000	Z_Max : 90.001
X_Max : 165.000, X_Set_A : 170.000	Y_Min : -200.000, Y_Set_A : -205.000	Z_Min : 0.000
X_Center : 0.000	Y_Center : 0.000
X_Length 330.00	Y_Length 400.00	Z_Length 90.00

images/basepart.png

..

===> :Z_Min = 0.00,,,,,,,,,,Z_Min: : 0.00

	No.							Krpm	Feed Rate	Approach Rate	Z-Step
1	1	Bull-nose D 33.00 r 4.00	33.00	4.00	$images\outil1.tool.png$	20.00	5.50	1.5	3000	3000	0.40
2	2	Bull-nose D 17.00 r 2.00	17.00	2.00	$images\outil2.tool.png$	20.00	16.00	2.6	2500	2500	0.25
2	3	Bull-nose D 17.00 r 2.00	17.00	2.00	$images\outil3.tool.png$	70.00	16.10	2.6	2000	2200	0.10
4	5	Bull-nose D 17.00 r 0.80	17.00	0.80	$images\outil5.tool.png$	70.00	15.90	3.4	2500	2500	0.30
4	6	Bull-nose D 17.00 r 0.80	17.00	0.80	$images\outil6.tool.png$	70.00	16.00	3.4	2000	2200	0.10
5	7	Bull-nose D 10.00 r 1.00	10.00	1.00	$images\outil7.tool.png$	70.00	17.10	5.5	2300	2500	0.15
6	4	Bull-nose D 6.00 r 0.20	6.00	0.20	$images\outil4.tool.png$	10.00	4.80	6.5	2200	2200	0.07
6	8	Bull-nose D 6.00 r 0.20	6.00	0.20	$images\outil8.tool.png$	70.00	21.00	6.5	2200	2200	0.07
7	9	Bull-nose D 3.00 r 0.20	3.00	0.20	$images\outil9.tool.png$	70.00	21.10	7.0	1800	2000	0.05
WORKNC Tool List: 1, 2, 4, 5, 6, 7
Same tool number with different values.
