JS-26M1170Z_F04-S10.wApr4.htm

Job Sheet-26M1170Z_F04-S10.wnc

Path : D:\SeJong\model\2026\A-Tech\26M1170Z\04\04-1\

Geometry : 26M1170Z_F04.x_t.wnc

P/G : M032502Apr4.htm


X_Min : -190.000, X_Set_A : -195.000	Y_Max : 250.000, Y_Set_A : 255.000	Z_Max : 92.979
X_Max : 190.000, X_Set_A : 195.000	Y_Min : -250.000, Y_Set_A : -255.000	Z_Min : 0.000
X_Center : 0.000	Y_Center : 0.000
X_Length 380.00	Y_Length 500.00	Z_Length 92.98

images/basepart.png

..

===> :Z_Min = 0.00,,,,,,,,,,Z_Min: : 0.00

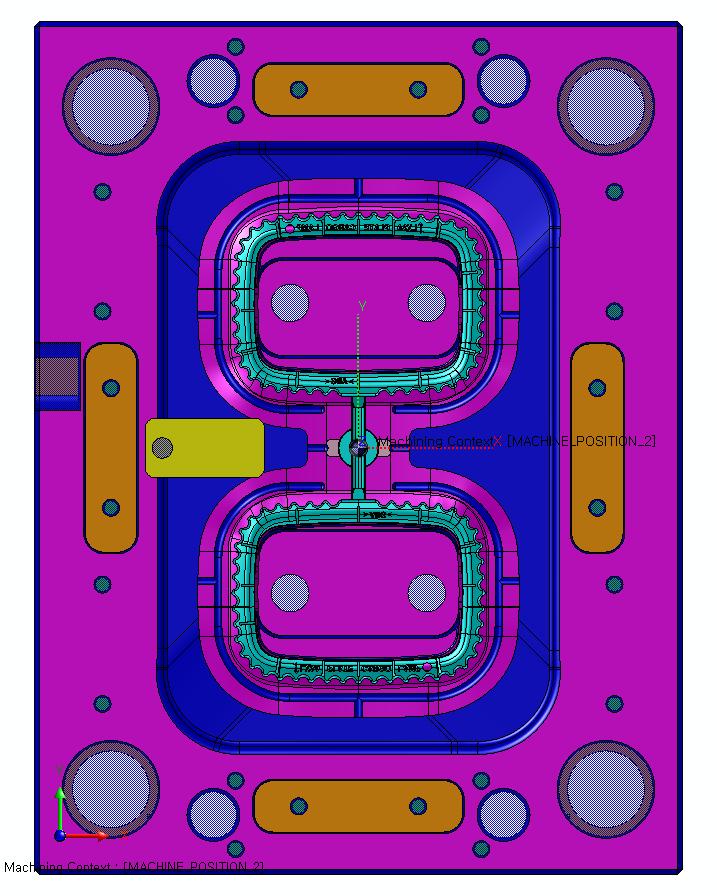

---MC2502-26M1170Z_F04-S10.wnc Apr4.jpg---- , Programmer's Comment : 100H,窍盔魄

NCD	Toolpath Type							Zmin (R_cen)	Stock	Krpm	Time
O7482	Z-Level Finishing	10		9.97	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	42.60	47.08	0.00	6.2	00:53
O7483	Z-Level Finishing	10		9.99	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	15.00	75.08	0.00	6.2	00:35
TOUCH
O7484	Optimized Planar Finishing	10		9.99	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	14.10	76.00	0.00	6.2	00:00
O7485	Optimized Planar Finishing	10		9.99	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	14.10	76.00	0.00	6.2	00:00
O7486	Optimized Planar Finishing	10		9.99	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	14.10	76.00	0.00	6.2	00:00
O7487	Optimized Planar Finishing	10		9.99	0.20	R:0.20 , B02-BT50_HF10_225N-SRS	14.10	76.00	0.00	6.2	00:00
-
	Manual Hole Machining					R: ,			0.00	6.2
	Centering	24		10.00		R:0.00 , T02-BT50_Slim-Chuck-155-SRS	3.00	73.00	0.00	1.6	00:01
	Drilling	25		7.10		R:0.00 , T01-BT50_Drill-Chuck-130-SRS	41.20	49.87	0.00	0.7	00:24
	Centering	23		16.00		R:0.00 , A04-BT50_C20-150-SRS	21.10	70.00	0.00	2.3	00:01
	Tapping	22		8.00		R:0.00 , T03-BT50_Tap-Chuck-SRS	38.00	53.00	0.00	0.1	00:04

82 83 84 85 86 87 88 88.1 88.2 88.3 88.4, Selected : 204299.41mm

Total Time : 01:31

(Each-PP) : 54_G154 ≠≠ [ VM960 ] ≠≠ , Saved File Name : M0325021Apr4.htm, Save time : 20:27:19 , Saved Counter : 1

Concatenated Postprocessor
No.	CC_NCD	Postprocessor	Toolpath List:	Length: Total	Time: Total
1	O0401	54_G154==[ Drill / Tap ]==	88.1 88.2 88.3 88.4	461.40	00:00
